Smart City Sensor

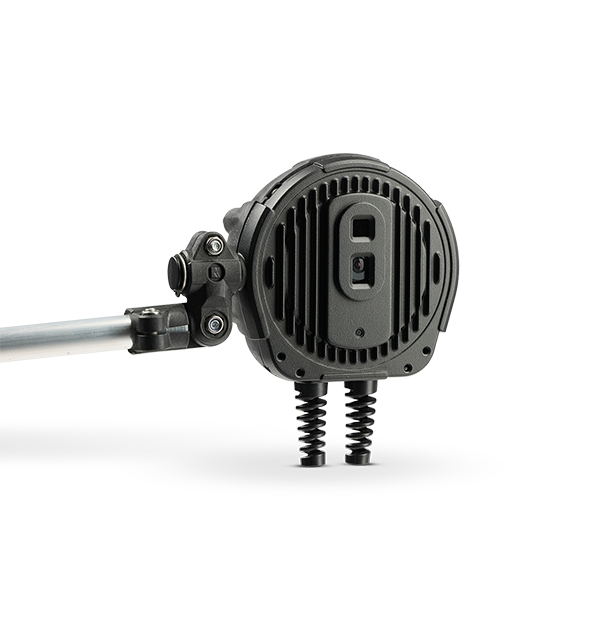

TrafiCam™ 3

カメラモデル: TrafiCam3 Narrow サポートページはこちら
product image

FLIR TrafiCam 3 is an affordable, all-round detection sensor for traffic monitoring and dynamic traffic signal control. This rugged, compact uses visual imaging and Wi-Fi technology to adapt traffic signals based on the presence detection of traffic objects vehicles while also generating basic count data at intersections and in urban environments. Key to helping traffic engineers improve vehicle flows, monitor congestion, and enhance safety, TrafiCam 3 ensures cities can collect accurate road data as well as measure travel and delay times for different transport modes.

  • Dynamic Traffic Control

    Monitors MAC addresses of Wi-Fi-enabled devices such as smartphones to determine rates of travel along road segments.

  • Valuable, Accurate Traffic Data

    Generates basic count data at intersections and in urban environments, in any environmental conditions.

  • Comprehensive Reporting

    Mounts quickly and integrates with existing platforms through BPL technology or PoE connection.

製品仕様
システム概要
検知機能
Vehicle presence
検知区域
8 vehicle presence zones
通信
WiFi
IEEE 802.11 type b,g,n EIRP <100 mW
イーサネット
10/100 MBps PoE A and PoE B
圧縮
H.264, MPEG-4, MJPEG
出力
1 N/O and 1 N/C dry contacts direct
16 N/C dry contacts via TI BPL3, TI SLT or 4 N/C via BPL3
Edge B&SIU onboard + maximum 5x N/C via 4I/O USB
expansion boards (max. total 24 outputs)
SDLC: BIU–64 or SUI–128
設定
Web page via secure Wi-Fi or Ethernet
電気設備
FCC
FCC part 15 class A
検知距離
15–75 m (50–250 ft)
消費電力
Average 6.2 W, peak 7 W, peak with powerdip 14 W
電力線通信
Via TI BPL3 or TI BPL3 EDGE interface
入力電源
12 – 42 VAC
12 – 48 VDC
環境
EU指令
EMC 2014/30/EU, RoHS 2011/65/EU
IP等級
IP67
使用温度
-40°C to 74°C (-40°F to 165°F)
衝撃、振動
NEMA TS2 specs
イメージングとレンズ
ストリーミングビデオ
RTSP
フレームレート
15 fps
解像度
640 × 480 pixel, color CMOS
機械設備
ブラケット
PA GF30 mounting clamps and aluminum tube
材質
Aluminum housing with PC GF10 sunshield; All weatherproof UV-resistant
取付け高さ
5.5–8 m (18.0–26.0 ft)
重量
850 g / 1.87 lb (camera with bracket)
寸法[取付ブラケット含む]
70 × 200 × 440 mm (2.75 × 7.87 × 17.32 in)
関連ドキュメント
輸出規制

輸出規制

本書に掲載されている機器は欧州連合で生産されており、欧州連合の政府によって多目的用途に対応した製品として管理されています。(米国内で使用されている、または米国人によって所有されている場合は米国の法域に属するものとし、外国人(米国人以外)に再譲渡または共有する際には許可が必要となる可能性があります。)
