New
Visible 4K and Thermal Pan/Tilt Short Range Security Camera

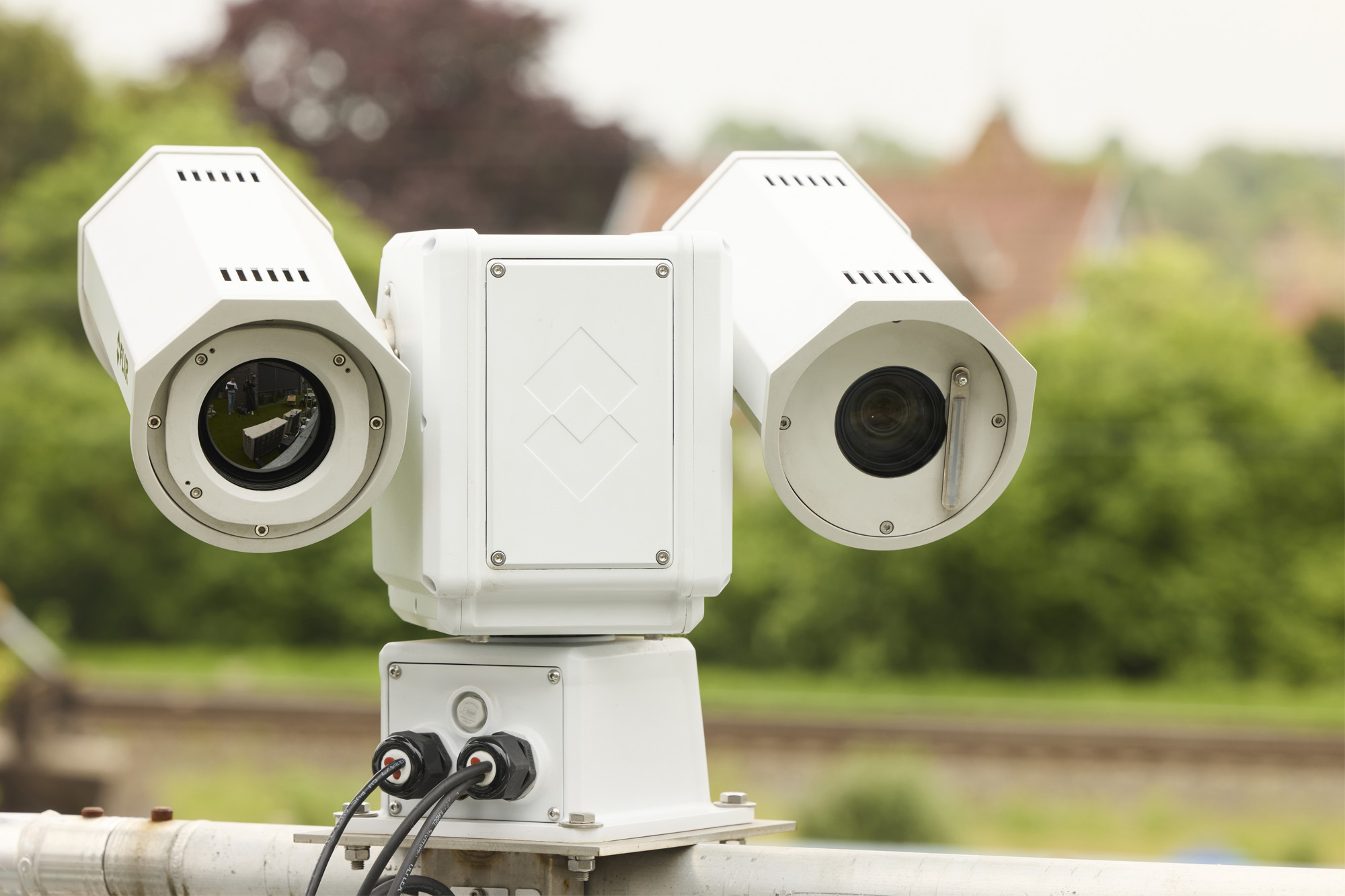

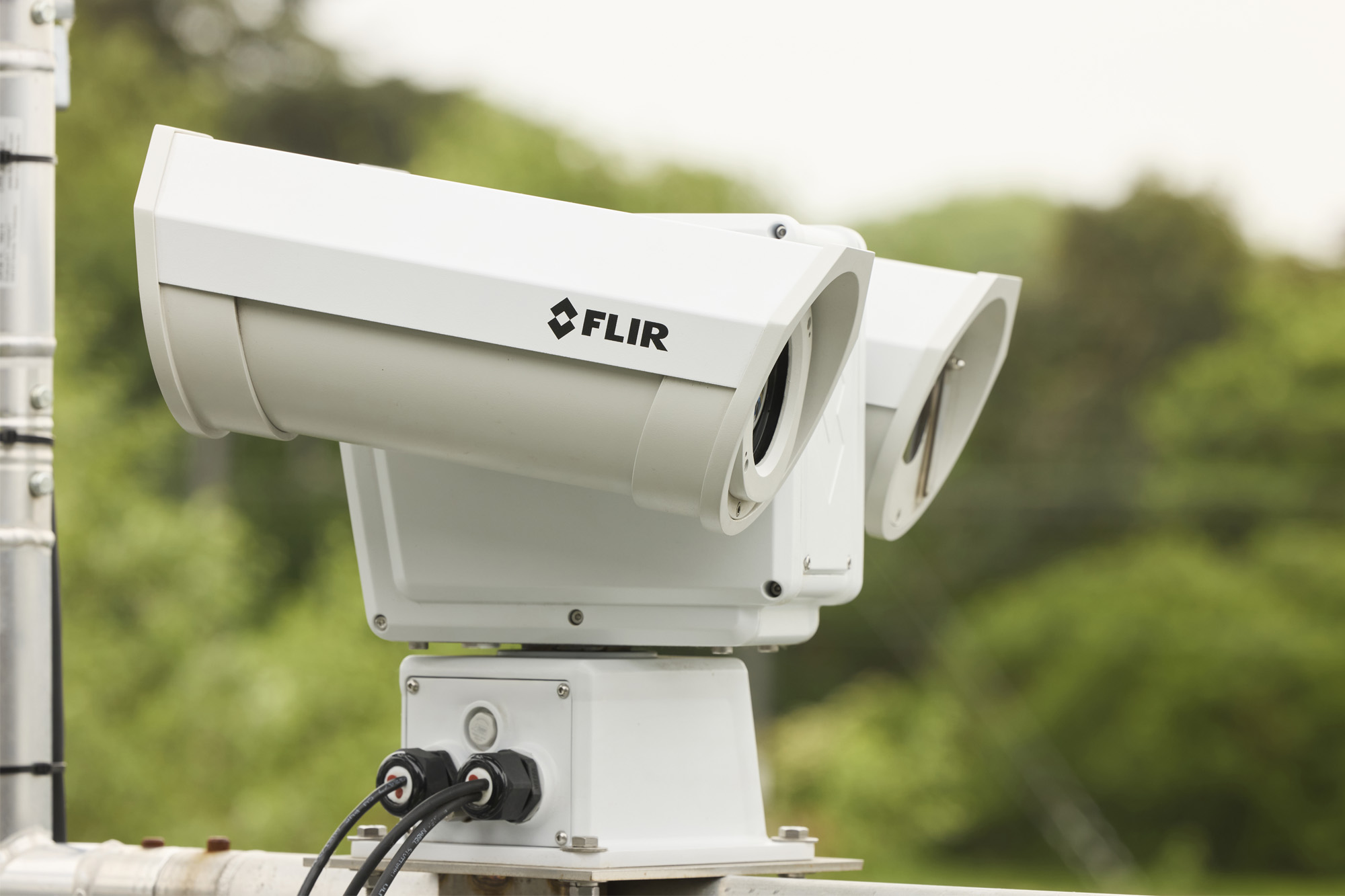

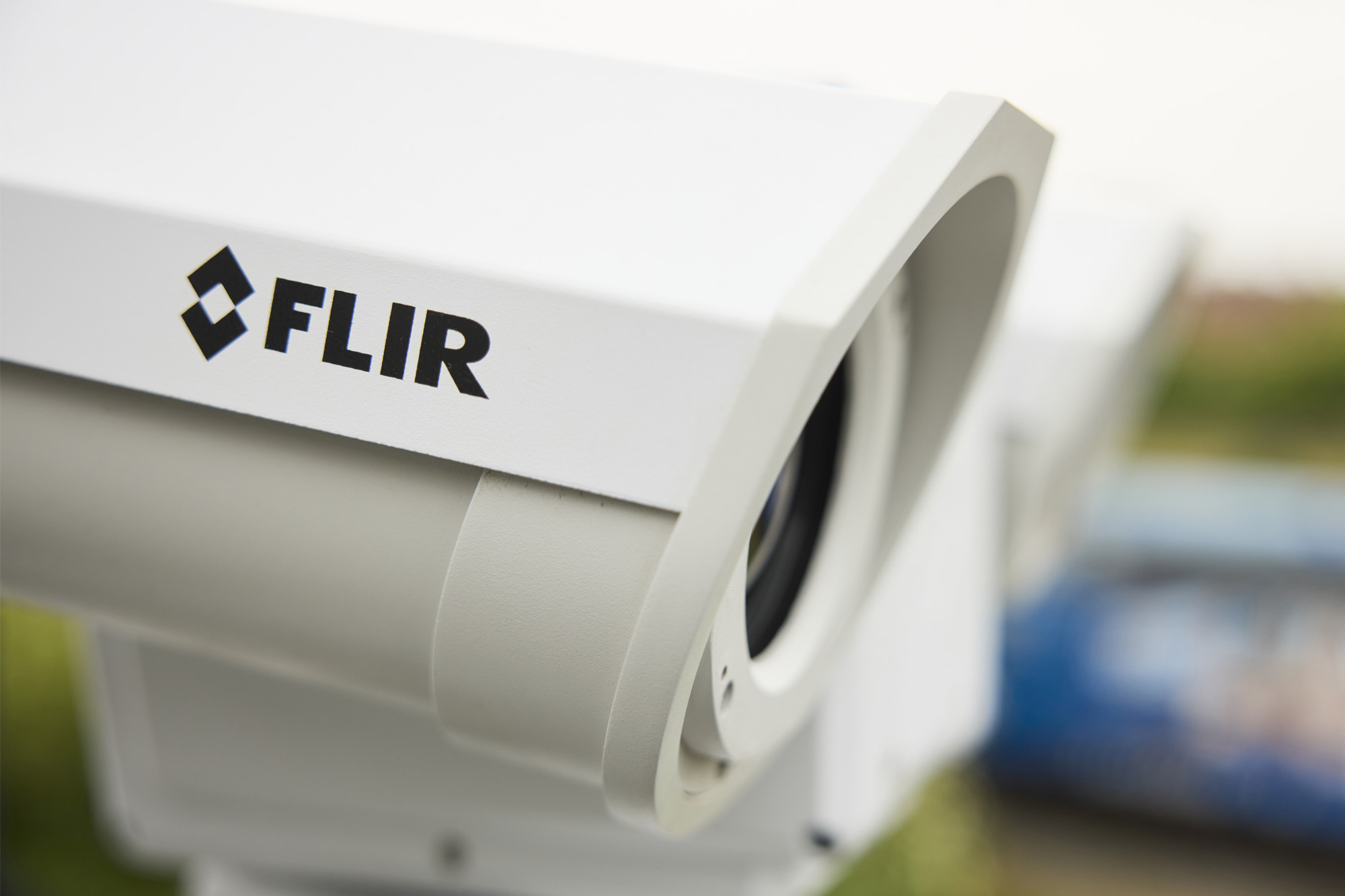

FLIR PT-Series AI SR

カメラモデル: PT-606 4K AI - 100 mm 25/30 Hz サポートページはこちら
product image

The FLIR PT-Series AI SR is our most advanced multi-sensor security camera, featuring a high-performance <25 mK NETD uncooled thermal sensor with 640 × 512 resolution, a 4K visible-light imaging sensor with 25× optical zoom and outstanding low-light performance. Enhanced with FLIR Fusion AI video analytics, the PT-Series AI SR offers reliable edge-based detection and classification of human and vehicle targets at extended ranges. Combined with FLIR Nexus®, the PT-Series AI SR allows you to seamlessly track objects or people and provides uninterrupted target tracking—even beyond a radar’s field of view. The PT-Series AI SR integrates easily with other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.

  • Advanced Multi-Sensor Imaging for
    All Conditions

    The FLIR PT-Series AI-SR combines a high-sensitivity <25 mK uncooled thermal sensor with up to 4× continuous zoom and a 4K visible-light camera featuring 25× optical zoom and superior low-light performance. This powerful dual-sensor design ensures clear, actionable imaging in complete darkness, bright sunlight, and challenging weather.

  • Edge AI Analytics for Smart Threat Detection

    Equipped with FLIR Fusion AI video analytics, the PT-Series AI-SR delivers real-time object detection, classification of people and vehicles, right at the edge. This reduces false alarms, improves situational awareness, and enables faster, more accurate responses without relying on external processing.

  • Seamless Sensor Fusion with FLIR Nexus®

    Fully integrated with FLIR Nexus®, the PT-Series AI-SR enables seamless coordination with FLIR radars and other thermal and visible cameras to maintain continuous tracking—even beyond a radar’s field of view. With high-speed, precision pan/tilt performance and 360° coverage, it’s ideal for wide-area surveillance and perimeter protection.

製品仕様
適合性と認定
適合と認証
FCC; CE Marked; RoHS; IP66; ONVIF Profile S, G, T, WEEE
サイバーセキュリティ
セキュリティ
ISO27001 certified
IEEE 802.1x
TLS/HTTPS
User Authentication Access control via firewall
User credentials with policy enforcement
Digest Authentication
環境
IP等級［埃・水の侵入］
IP66
使用温度範囲
-40°C to 70°C (-40°158°F) cold start
湿度
0 to 95% relative
除氷／防氷
MIL-STD-810F, Method 521.1; De-Icing
衝撃
MIL-STD-810F “Transportation”
振動
IEC 60068-2-27
保存温度範囲
-55°C to 85°C (-67°F to 185°F)
一般仕様
ズーム
Visual: 25x optical zoom
重量
~37 lb (16.8 kg): configuration dependent
焦点範囲
Athermalized, Focus Free
寸法（奥行 × 幅 × 高さ）
348× 467 × 326 mm (13.7, 18.4, 12.8 in)
入力電圧
24 V DC: 65 W (max w / o heaters) 195 W (max w heaters)
有効解像度
327,680 pixels (640 × 512)
測定解析
プログラム可能なプリセット
256
温度分解能
<25 mK at 25°C, F/10
PTZ
チルト角_速度
90° to -90°; 0.1° to 30°/ sec
パン角度_速度
Continuous 360°; 0.1° to 60°/ sec
システム統合
イーサネット
Yes
ネットワークAPI
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
外部解析互換性
Yes
対応プロトコル
IPv4, HTTP, HTTPS, UPnP, DNS,NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X
サーマルカメラ
アレイ形式 (熱)
640 × 512, long-life, uncooled VOx microbolometer
サーマルAGC関心領域［ROI］
Default, Presets, and User definable to ensure optimal image quality on subjects of interest
スペクトル範囲 (熱)
7.5 μm to 13.5 μm
画像均一性の最適化
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
可視カメラ
F値
F1.6 to F4.8
センサー式照明
Back Light Compensation
センタータイプ、昼光
4K (2160p), 1/1.8-type STARVIS II CMOS
レンズ視野角
59.0° (wide) to 2.36° (tele)
ワイドダイナミックレンジ
120 dB
焦点距離
6.5 mm (wide) to 162.5 mm (tele)
低照度カメラ感度
Color: 0.28 lx (F1.6, AGC on, 1/30s)
動画と録画
ビデオ圧縮
Two independent channels of H.265, H.264 & M-JPEG for each sensor
メディアギャラリー
輸出規制

輸出規制

このページに含まれる情報は、最終製品の仕様に応じて国際武器取引規則（ITAR）（22 CFRセクション120～130）または輸出管理規則（EAR）（15 CFRセクション730～774）の対象となる可能性のある製品に関連しています。管轄区域および分類は、要請に応じて提供されます。

FLIR PT-Series AI SR - Model: PT-606 4K AI - 100 mm 25/30 Hz

Change Selection
